Ambition Epoch Max Review: Specs, Artist Feedback, and Where to Buy

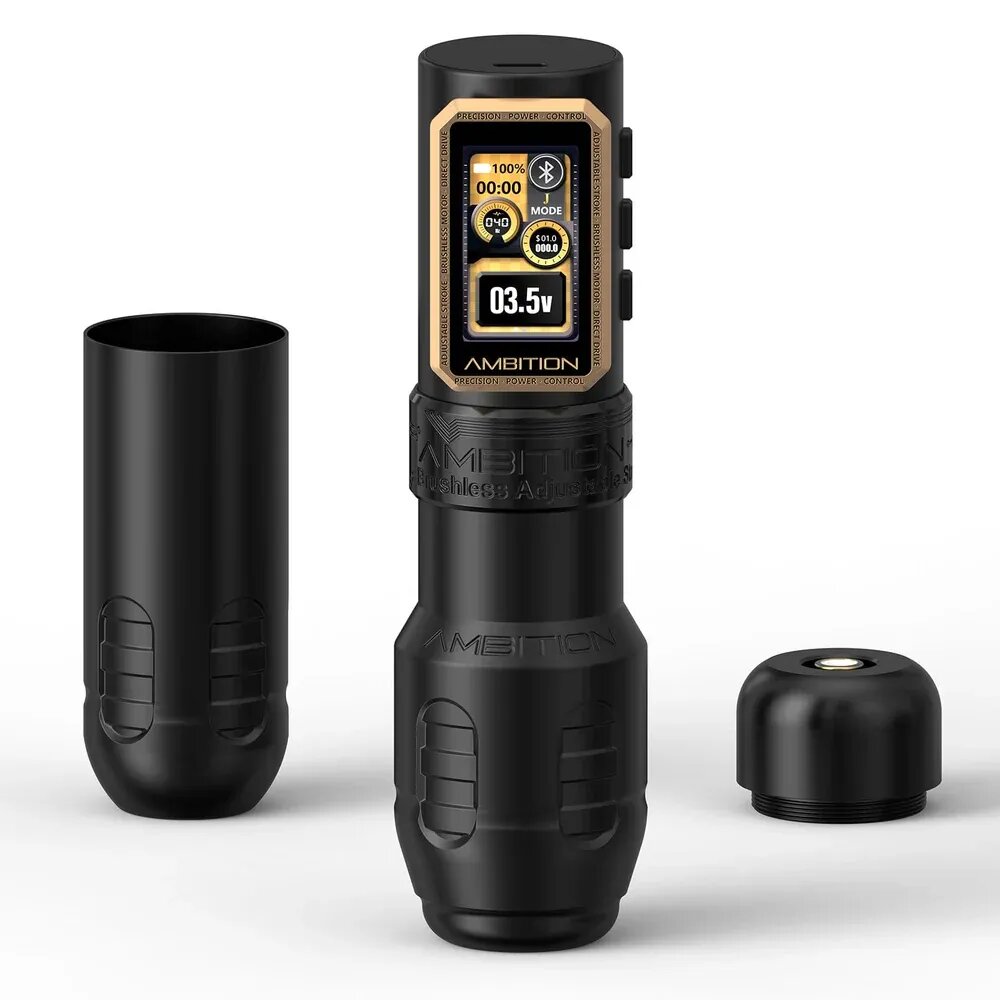

The Ambition Epoch Max wireless tattoo machine is engineered as a dedicated powerhouse for tattoo artists seeking uncompromised needle control, direct-drive punch, and multi-stroke versatility. Combining an adjustable direct-drive system with a high-torque brushless motor and dual grip options, this pen eliminates the need to maintain multiple single-purpose machines. To verify available setups, current factory inventory, and warranty coverage, check the official product listing.
Technical Specifications and Core Data
Wireless Tattoo Pen
Check the price- Drive Mechanism: Adjustable Direct Drive system
- Stroke Settings: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0 mm (9 indexed settings)
- Motor Type: Custom 20x15 mm Brushless Motor
- Torque Output: 270 g·cm
- Motor Speed: Up to 12,000 RPM at 10V
- Operating Voltage Range: 1–12 V (precise 0.1 V increments)
- Battery Capacity: 2400 mAh detachable lithium-ion pack
- Battery Runtime: 6–7 hours continuous runtime per charge
- Recharge Time: Approximately 3 hours via Type-C
- Startup Modes: Standard (S) and Jump Start (J) modes
- Digital Interface: Full-color screen showing Voltage, Hertz, Battery Level, Session Timer, and Billing Mode
- Chassis Construction: CNC-machined aircraft-grade aluminum alloy
- Grip Diameters and Weight: 42 mm grip (301 g total) and 34 mm grip (246 g total)
- Corded Capability: Dedicated RCA conversion adapter included
- Factory Warranty: 1 year comprehensive manufacturer warranty
- Shipping: Free worldwide shipping
These official Ambition Epoch Max specs underline an emphasis on mechanical flexibility and high daily output. By supplying two interchangeable grips with significantly different diameters and center-of-gravity balances, the machine prevents forearm fatigue and accommodates both delicate finger-tip maneuvering and heavy palm-supported passes during marathon sessions.
Ambition Epoch Max Wireless Tattoo Machine: Engineering & Features
Wireless Tattoo Pen
Check the priceHigh-Torque Brushless Motor and Direct-Drive Impact
Unlike conventional rotary pens that rely on spring-dampened give systems, this machine is built around a true direct-drive mechanism. This setup provides immediate tactile feedback and an uncompromising hit, ensuring that every needle strike translates directly into the dermis without power loss. Inside the chassis sits an industrial-grade 20x15 mm brushless motor producing 270 g·cm of torque and up to 12,000 RPM at 10V. This output prevents needle bogging when pushing large magnum groupings through resistant, fibrous skin.
The internal brushless architecture generates less friction, significantly reducing heat buildup over prolonged sessions. Integrated digital circuitry maintains smooth voltage delivery from 1 to 12V. Furthermore, the built-in Jump Start mode delivers an instantaneous voltage pulse to overcome stiff silicone membrane resistance in heavy-duty cartridges, safeguarding the motor coils from premature wear.
Toolless 9-Stroke Cam Adjustment (1.0 mm to 5.0 mm)
A primary highlight in this Ambition Epoch Max review is the wide stroke range accessible without allen wrenches or disassembly. By simply unscrewing the grip, holding the stroke locator, and rotating the marked cam ring, artists can select 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, or 5.0 mm settings. The indexed cam locks firmly into place, eliminating unwanted displacement during intense vibration.
The short 1.0–2.0 mm strokes provide the gentle touch needed for micro-realism, fine line details, and smooth black-and-grey shading. The middle 2.5–3.5 mm options cover daily color blending, whip-shading, and standard line work. Setting the cam to 4.0, 4.5, or 5.0 mm turns this Ambition wireless tattoo pen into a high-impact liner and saturation machine capable of single-pass solid black fills and bold traditional outlines.
Modular Ergonomics and Digital Power Management
The aircraft aluminum chassis offers two distinct physical profiles. The stock 42 mm grip brings total machine weight to 301 grams, placing the balance forward to leverage downward pressure without straining the fingers. The secondary 34 mm grip trims the setup down to 246 grams, offering an agile feel tailored to artists with smaller hands or those executing intricate linework.
Power is delivered via an onboard 2400 mAh battery pack that provides 6 to 7 hours of working time. The crisp digital display keeps vital session metrics in view, including operating frequency in Hertz and a integrated billing timer. If the session outlasts the battery, the included RCA module instantly converts the machine to a corded power supply without interrupting workflow.
Real-World Studio Performance and Video Overview
In studio testing, the machine shows exceptional structural rigidity. Parasitic lateral vibration is kept minimal by the dense aluminum body, even when driving large needle groupings at higher voltages. Acoustic output remains a low, consistent hum rather than the high-pitched rattle common in cheaper rotary machines.
When reviewing hands-on video demonstrations, observe how the direct drive responds across different stroke lengths. Notice the immediate startup response under membrane resistance, the crisp tactile click of the manual stroke cam, and the legible color display under studio lighting. These elements demonstrate the refined engineering built into the machine.
Key Advantages and Practical Considerations
Wireless Tattoo Pen
Check the price- Comprehensive 9-stroke range (1.0 mm to 5.0 mm) with quick manual cam adjustment;
- Heavy-duty 270 g·cm brushless motor capable of driving large needle cartridges effortlessly;
- Dual grip configuration (34 mm and 42 mm) for tailored balance and grip comfort;
- High-capacity 2400 mAh battery with real-time frequency (Hz) monitoring and RCA backup;
- Reliable 1-year manufacturer warranty and complimentary worldwide shipping.
- Adjusting stroke length requires unscrewing the grip, which means stroke changes cannot be performed over outer barrier film mid-session;
- The 42 mm grip setup weighs 301 grams, which may require an adjustment period for artists accustomed to ultralight composite pens.
Who Is This Tattoo Pen Built For?
Wireless Tattoo Pen
Check the priceThe machine is tailored for all-around artists who refuse to compromise between crisp lining, soft shading, and heavy color packing. The ability to shift from a short 1.0 mm stroke to a punchy 5.0 mm throw makes it an ideal standalone workhorse for studios handling diverse tattoo styles daily.
It also suits artists working with heavy needle configurations (such as 15 to 49 Magnums) who require consistent torque without motor stall. Traveling artists and convention workers will benefit from the generous battery life and RCA corded fail-safe. Studio Ambition Epoch Max reviews consistently praise this versatility across long tattoo sessions.
Studio Efficiency and How to Order
The Ambition Epoch Max wireless tattoo machine eliminates the need for separate lining, shading, and packing pens by uniting direct-drive performance with wide mechanical stroke adjustability. High torque output, balanced ergonomics, and consistent needle penetration deliver professional results session after session. When artists decide to buy Ambition tattoo machine hardware directly from authorized channels, they receive full customer support and factory backing.
To view full specifications, check package accessories, and order your machine with free shipping and a 1-year warranty, visit the official store link today.
